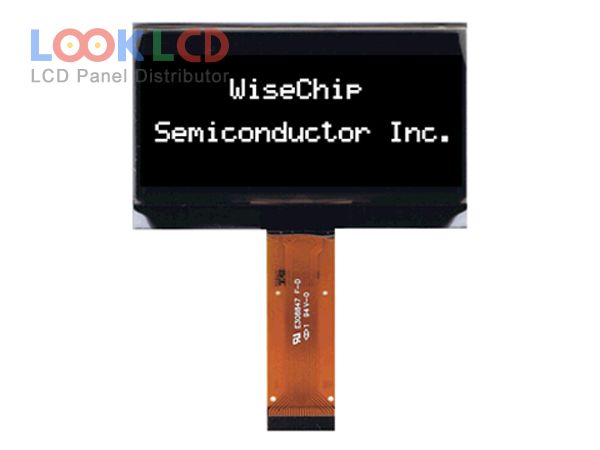

| Número da peça | UG-2864ASWPG01 |
| Marca | WiseChip |
| Tamanho | 2.4 |
| Aplicativo | IA |
| Resolução | 128×64 |
| Composição | OLED |
| Brilho | 80 |
| CR | |
| cores | Mono(White) |
| luz de fundo | self |
| Interface | CPU/SPI/I²C |
| marca do painel | WiseChip |
| modelo de painel | UG-2864ASWPG01 |
| tipo de painel | PM-OLED , OLED |
| tamanho do painel | 2.4 inch |
| resolução | 128×64 |
| área ativa | 55.01×27.49 mm |
| contorno | 60.5×37 mm |
| superfície | |
| brilho | 80 cd/m² (Typ.) |
| taxa de contraste | |
| exibir cores | Mono(White) |
| ângulo de visão | |
| motorista ic | Built-in SSD1309 |
| interface de sinal | 8-bit 6800/8080 parallel, 4-wire SPI, I²C |
| rohs: | |
| aplicativo | IA |
| UG-2864ASWIG01 | WiseChip | 2.7 | 128×64 |
| UG-2864ASWPG01 | WiseChip | 2.4 | 128×64 |
| UG-2864ASYCG01 | WiseChip | 1.54 | 128×64 |
| UG-2864ASYDT01 | WiseChip | 2.7 | 128×64 |
| UG-2864ASYIG01 | WiseChip | 2.7 | 128×64 |
| UG-2864HLBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864HMBEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864HSWEG01 | WiseChip | 0.96 | 128×64 |
| UG-2864KLBLG01 | WiseChip | 1.3 | 128×64 |
| UG-2864KLBMG01 | WiseChip | 1.54 | 128×64 |
| AA104SH02--T1 | Mitsubishi | 10.4 | 800×600 |
| AA121SL12 | Mitsubishi | 12.1 | 800×600 |
| C555001 | SII | 5.7 | 320×240 |
| G150XG01 V1 | AUO | 15.0 | 1024×768 |
| LM-EH53-22NTK | SANYO | 10.4 | 640×480 |
| LM085YB1T01 | SHARP | 8.5 | 800×480 |
| LM64C21P | SHARP | 8.0 | 640×480 |
| LQ150X1LG55 | SHARP | 15.0 | 1024×768 |
| M101GWN9 R2 | IVO | 10.1 | 1024×600 |
| TX17D200VM0BAA | KOE | 6.5 | 800×480 |
