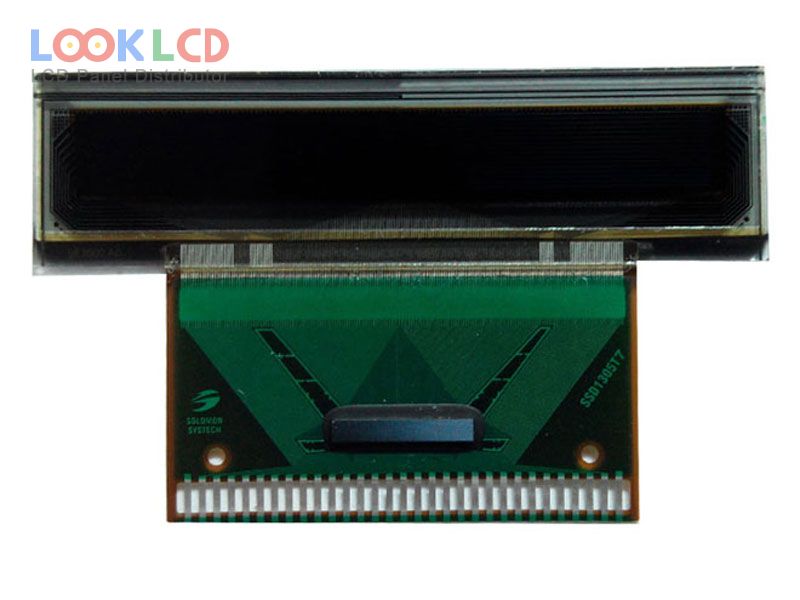

| Número da peça | OEL9M0078-G-E |
| Marca | Other |
| Tamanho | 1.45 |
| Aplicativo | IA |
| Resolução | 132×16 |
| Composição | OLED |
| Brilho | |
| CR | 10000:1 |
| cores | Mono(Green) |
| luz de fundo | self |
| Interface | CPU/SPI/I²C |
| marca do painel | TRULY |
| modelo de painel | OEL9M0078-G-E |
| tipo de painel | PM-OLED , OLED |
| tamanho do painel | 1.45 inch |
| resolução | 132×16 |
| área ativa | 36.412×4.62 mm |
| contorno | 43.06×11.75×1.6 mm |
| superfície | |
| brilho | |
| taxa de contraste | 10000 : 1 (Min.) |
| exibir cores | Mono(Green) (1-bit) |
| ângulo de visão | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| motorista ic | TAB Built-in SSD1305T7R1 |
| interface de sinal | CPU/SPI/I²C, 31 pins |
| aplicativo | IA |
