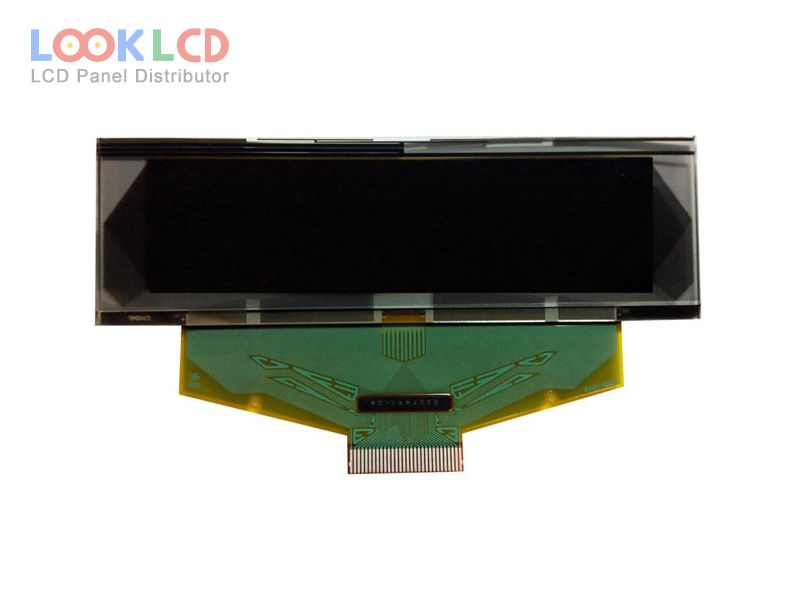

| Número da peça | OEL9M0065-W-E |
| Marca | Other |
| Tamanho | 2.7 |
| Aplicativo | IA |
| Resolução | 256×64 |
| Composição | OLED |
| Brilho | |
| CR | 10000:1 |
| cores | Grayscale(W) |
| luz de fundo | self |
| Interface | CPU/SPI |
| marca do painel | TRULY |
| modelo de painel | OEL9M0065-W-E 1 Compatible model |
| tipo de painel | PM-OLED , OLED |
| tamanho do painel | 2.7 inch |
| resolução | 256×64 |
| área ativa | 66.53×16.61 mm |
| contorno | 82×25.5×1.6 mm |
| superfície | |
| brilho | |
| taxa de contraste | 10000 : 1 (Min.) |
| exibir cores | Grayscale(W) (4-bit) |
| ângulo de visão | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| frequência | 100Hz |
| motorista ic | COF Built-in SSD1322UR1 |
| interface de sinal | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| aplicativo | IA |
