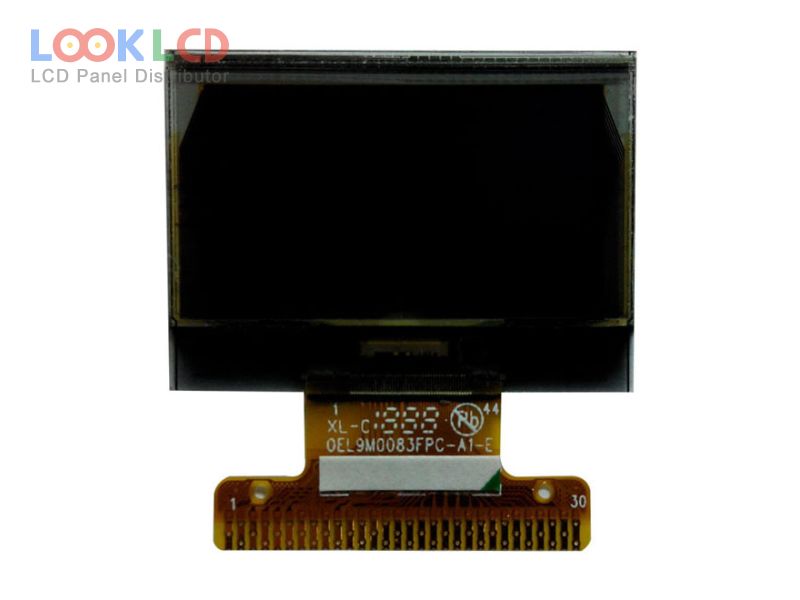

| Número da peça | OEL9M0083-G-E |
| Marca | Other |
| Tamanho | 0.96 |
| Aplicativo | |
| Resolução | 128×64 |
| Composição | OLED |
| Brilho | |
| CR | 10000:1 |
| cores | Mono(Green) |
| luz de fundo | self |
| Interface | CPU/SPI/I²C |
| marca do painel | TRULY |
| modelo de painel | OEL9M0083-G-E |
| tipo de painel | PM-OLED , OLED |
| tamanho do painel | 0.96 inch |
| resolução | 128×64 |
| área ativa | 21.74×11.175 mm |
| contorno | 26.7×19.26×1.65 mm |
| superfície | |
| brilho | |
| taxa de contraste | 10000 : 1 (Min.) |
| exibir cores | Mono(Green) (1-bit) |
| ângulo de visão | 80/80/80/80 (Min.)(L/R/U/D) |
| frequência | 100Hz |
| motorista ic | COG Built-in SH1106G |
| interface de sinal | 8-bit 6800/8080 parallel, 3/4-wire SPI, I²C, 30 pins |
