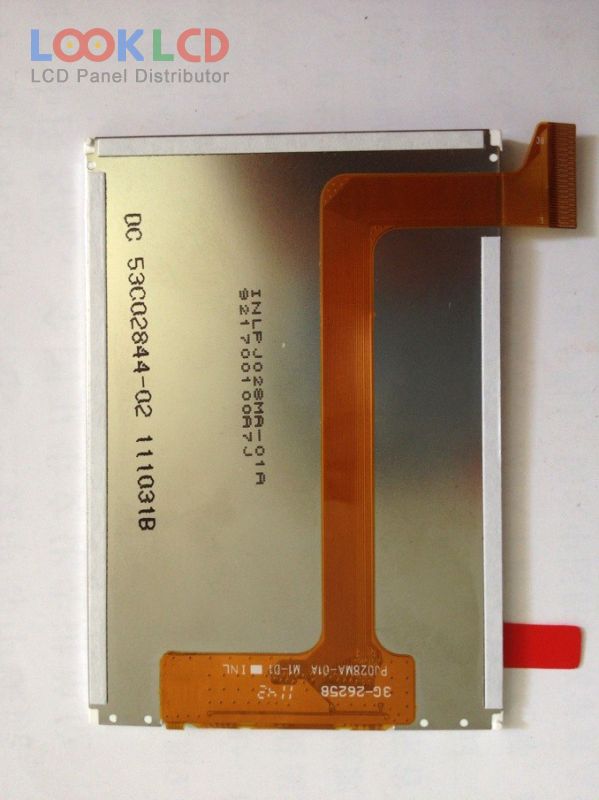

| Número da peça | PJ028MA-01A |
| Marca | Innolux |
| Tamanho | 2.8 |
| Aplicativo | MPH |
| Resolução | 240×320 |
| Composição | LCM |
| Brilho | 290 |
| CR | 450:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | TTL |
| marca do painel | CHIMEI INNOLUX |
| modelo de painel | PJ028MA-01A |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 2.8 inch |
| resolução | 240(RGB)×320 , QVGA |
| modo de exibição | Normally Black, Transmissive |
| área ativa | 43.2×57.6 mm |
| contorno | 47.74×67.95×2.3 mm |
| superfície | |
| brilho | 290 cd/m² (Typ.) |
| taxa de contraste | 450:1 (Typ.) |
| exibir cores | 262K (6-bit), CIE193170% |
| tempo de resposta | 30 (Typ.)(Tr+Td) |
| ângulo de visão | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 80Hz |
| tipo de lâmpada | 1S4PWLEDWithout Driver |
| interface de sinal | Parallel RGB (1 ch, 6-bit) + SPI, 39 pins |
| tensão de entrada | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) |
| aplicativo | MPH |
