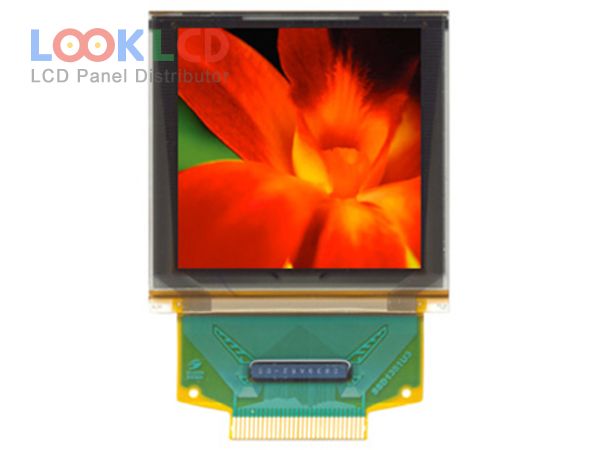

| Número da peça | UG-2828GDEDF11 |
| Marca | WiseChip |
| Tamanho | 1.5 |
| Aplicativo | MPH |
| Resolução | 128×128 |
| Composição | OLED |
| Brilho | 90 |
| CR | 10000:1 |
| cores | 262K |
| luz de fundo | self |
| Interface | CPU/SPI |
| marca do painel | Univision |
| modelo de painel | UG-2828GDEDF11 |
| tipo de painel | PM-OLED , OLED |
| tamanho do painel | 1.5 inch |
| resolução | 128(RGB)×128 |
| área ativa | 26.855×26.864 mm |
| contorno | 33.8×34×1.7 mm |
| superfície | Antiglare |
| brilho | 90 cd/m² (Typ.) |
| taxa de contraste | 10000 : 1 (Typ.) |
| exibir cores | 262K (6-bit), CIE193163% |
| ângulo de visão | 80/80/80/80 (Min.)(L/R/U/D) |
| motorista ic | COF Built-in SSD1351 |
| interface de sinal | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| tensão de entrada | 2.8/2.5/1.8/13V (Typ.)(VCI/VDD/VDDIO/VCC) |
| aplicativo | MPH |
