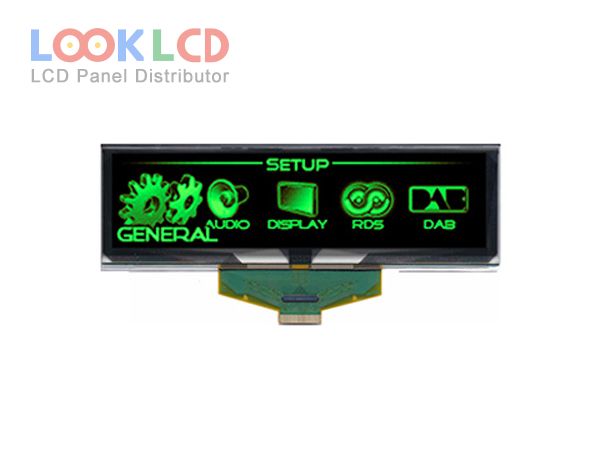

| Número da peça | UG-5664ASGGF01 |
| Marca | WiseChip |
| Tamanho | 5.5 |
| Aplicativo | IA |
| Resolução | 256×64 |
| Composição | OLED |
| Brilho | 80 |
| CR | 2000:1 |
| cores | Grayscale(G) |
| luz de fundo | self |
| Interface | CPU/SPI |
| marca do painel | Univision |
| modelo de painel | UG-5664ASGGF01 |
| tipo de painel | PM-OLED , OLED |
| tamanho do painel | 5.5 inch |
| resolução | 256×64 |
| área ativa | 135.65×33.89 mm |
| contorno | 146×45×2.1 mm |
| superfície | |
| brilho | 80 cd/m² (Typ.) |
| taxa de contraste | 2000 : 1 (Typ.) |
| exibir cores | Grayscale(G) (4-bit) |
| ângulo de visão | 80/80/80/80 (Min.)(L/R/U/D) |
| motorista ic | COF Built-in SSD1322 |
| interface de sinal | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| tensão de entrada | 2.8/15V (Typ.)(VCI/VCC) |
| rohs: | |
| aplicativo | IA |
| BV055FHM-N00 | BOE | 5.5 | 1080×1920 |
| LH550WF2-SD03 | LG Display | 5.5 | 1080×1920 |
| UG-5664ALBDF01 | WiseChip | 2.8 | 256×64 |
| UG-5664ALBEF01 | WiseChip | 3.1 | 256×64 |
| UG-5664ASGEF01 | WiseChip | 3.1 | 256×64 |
| UG-5664ASGGF01 | WiseChip | 5.5 | 256×64 |
| UG-5664ASWEF01 | WiseChip | 3.1 | 256×64 |
| UG-5664ASYEF01 | WiseChip | 3.1 | 256×64 |
| UG-5664ASYGF01 | WiseChip | 5.5 | 256×64 |
| AA104XD12 | Mitsubishi | 10.4 | 1024×768 |
| G065VN01 V2 | AUO | 6.5 | 640×480 |
| LT057AA34B00 | TOSHIBA | 5.7 | 320×240 |
| LTA104D182F | TOSHIBA | 10.4 | 800×600 |
| NL6448BC33-59D | NLT | 10.4 | 640×480 |
| NL6448BC33-64D | NLT | 10.4 | 640×480 |
| TX17D01VM2EAB | KOE | 6.5 | 640×480 |
| TX31D41VM2BAA | KOE | 12.1 | 800×600 |
| UG-5664ASYEF01 | WiseChip | 3.1 | 256×64 |
| UG-9639TSWEG03 | WiseChip | 0.82 | 96×39 |
