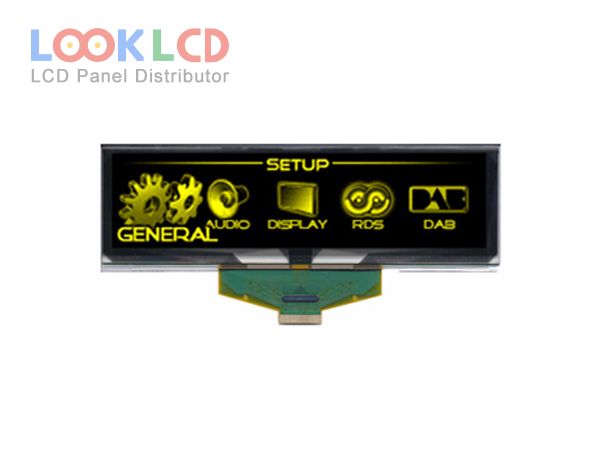

| Número da peça | UG-5664ASYGF01 |
| Marca | WiseChip |
| Tamanho | 5.5 |
| Aplicativo | IA |
| Resolução | 256×64 |
| Composição | OLED |
| Brilho | 60 |
| CR | 10000:1 |
| cores | Grayscale(Y) |
| luz de fundo | self |
| Interface | CPU/SPI |
| marca do painel | Univision |
| modelo de painel | UG-5664ASYGF01 |
| tipo de painel | PM-OLED , OLED |
| tamanho do painel | 5.5 inch |
| resolução | 256×64 |
| área ativa | 135.65×33.89 mm |
| contorno | 146×45×2.1 mm |
| superfície | Antiglare |
| brilho | 60 cd/m² (Typ.) |
| taxa de contraste | 10000 : 1 (Typ.) |
| exibir cores | Grayscale(Y) (4-bit) |
| ângulo de visão | |
| motorista ic | COF Built-in SSD1322 |
| interface de sinal | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| tensão de entrada | 2.8/15V (Typ.)(VCI/VCC) |
| rohs: | |
| aplicativo | IA |
