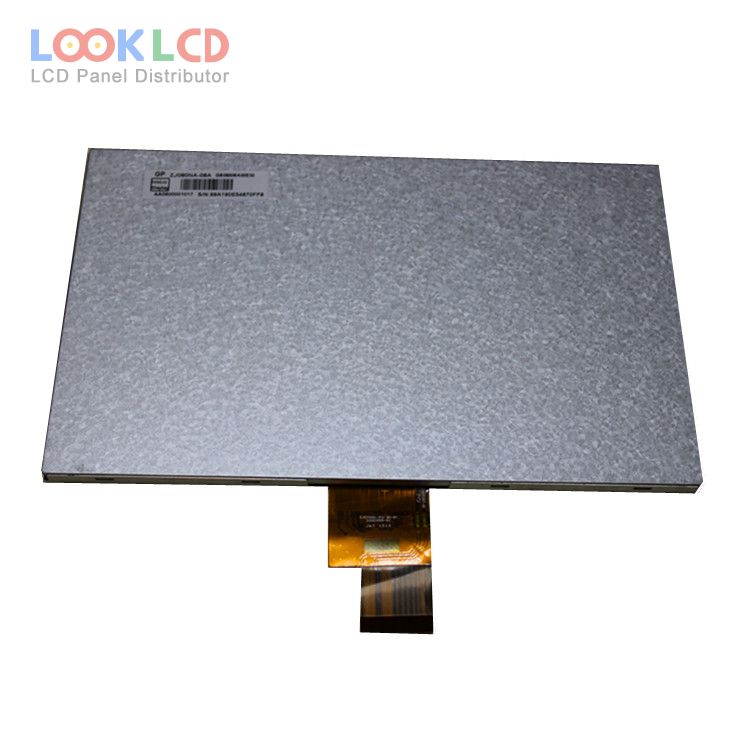

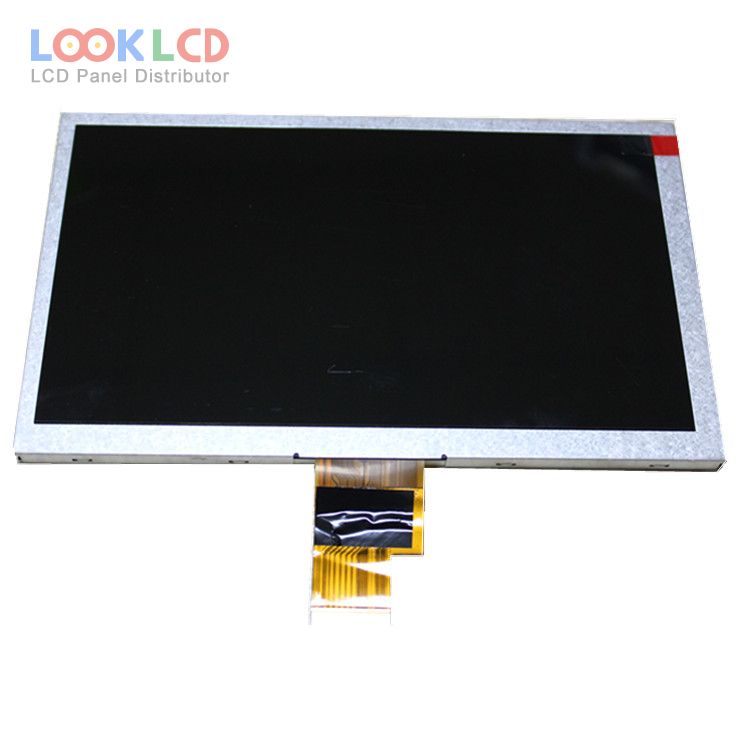

| Número da peça | ZJ080NA-08A |
| Marca | Innolux |
| Tamanho | 8.0 |
| Aplicativo | CNS |
| Resolução | 1024×600 |
| Composição | LCM |
| Brilho | 500 |
| CR | 700:1 |
| cores | 16.7M |
| luz de fundo | WLED |
| Interface | LVDS |
| marca do painel | CHIMEI INNOLUX |
| modelo de painel | ZJ080NA-08A |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 8.0 inch |
| resolução | 1024(RGB)×600 , WSVGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 176.64×99.36 mm |
| contorno | 192.8×116.9×6.7 mm |
| superfície | |
| brilho | 500 cd/m² (Typ.) |
| taxa de contraste | 700:1 (Typ.) |
| exibir cores | 16.7M (8-bit), CIE193170% |
| tempo de resposta | 10/20 (Typ.)(Tr/Td) |
| ângulo de visão | 75/75/70/75 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | WLEDWithout Driver |
| interface de sinal | LVDS (1 ch, 8-bit), 40 pins |
| tensão de entrada | 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VHL) |
| aplicativo | CNS |
