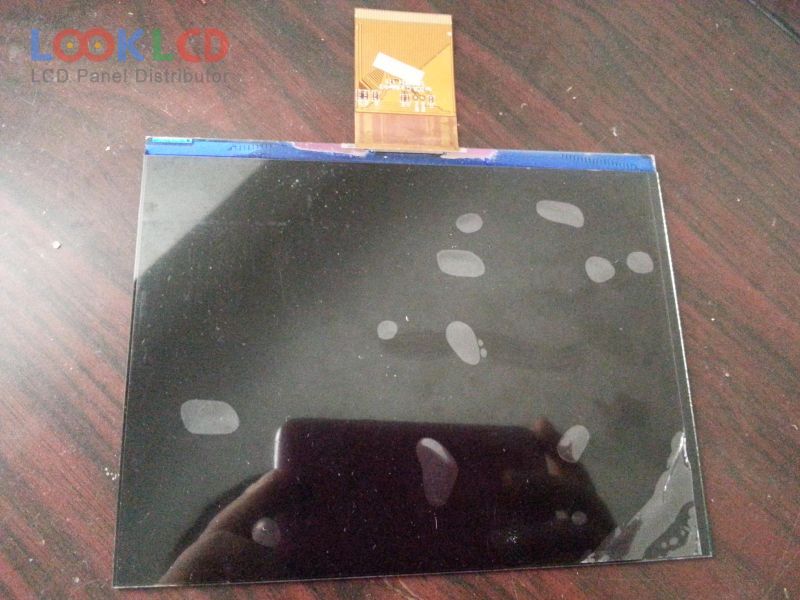

| Número da peça | A070SN02 V0 CELL |
| Marca | AUO |
| Tamanho | 7.0 |
| Aplicativo | DPF |
| Resolução | 800×600 |
| Composição | CELL |
| Brilho | 0 |
| CR | 500:1 |
| cores | 16.2M |
| luz de fundo | No B/L |
| Interface | TTL |
| marca do painel | AUO |
| modelo de painel | A070SN02 V0 CELL |
| tipo de painel | a-Si TFT-LCD , CELL |
| tamanho do painel | 7.0 inch |
| resolução | 800×600(RGB) , SVGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 141.6×106.2 mm |
| contorno | 150×116.5 mm |
| superfície | Antiglare, Hard coating (3H) |
| profundidade de vidro | 0.50+0.50 mm |
| transmissividade | 4.11% (Typ.)(with Polarizer) |
| taxa de contraste | 500:1 (Typ.) |
| exibir cores | 16.2M (6-bit + Dithering), CIE193150% |
| tempo de resposta | 12/18 (Typ.)(Tr/Td) |
| ângulo de visão | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| interface de sinal | TTL (1 ch, 8-bit) + SPI, 60 pins |
| tensão de entrada | 3.3/5/-5/14/-14V (Typ.)(VDD/VDPA/VDNA/VGH/VGL) |
| aplicativo | DPF |
