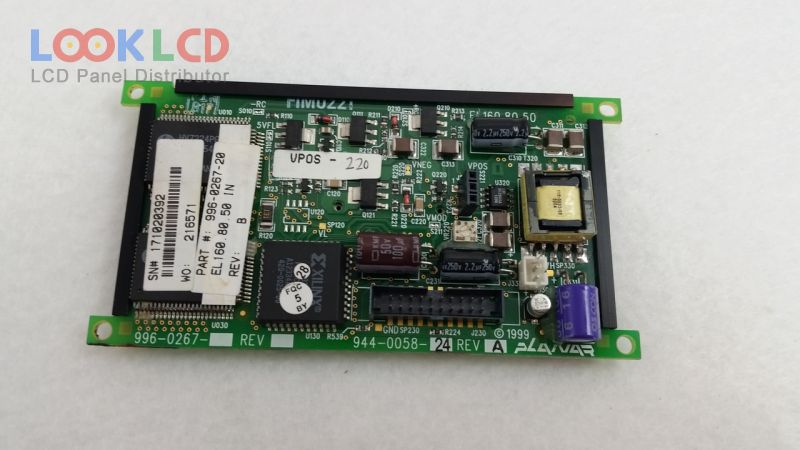

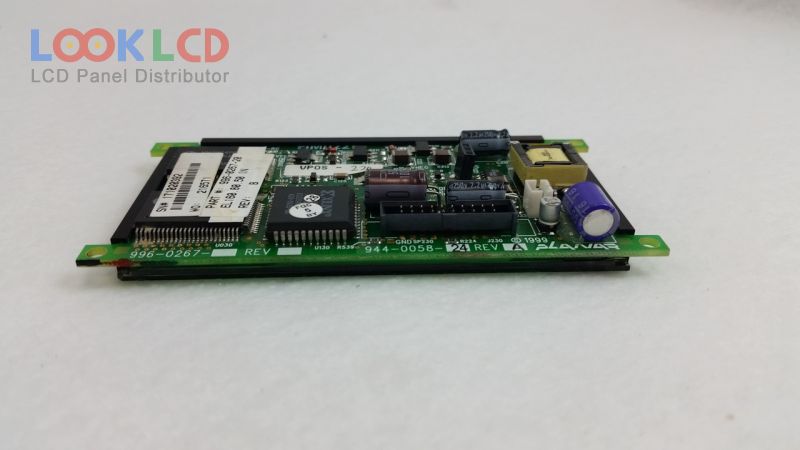

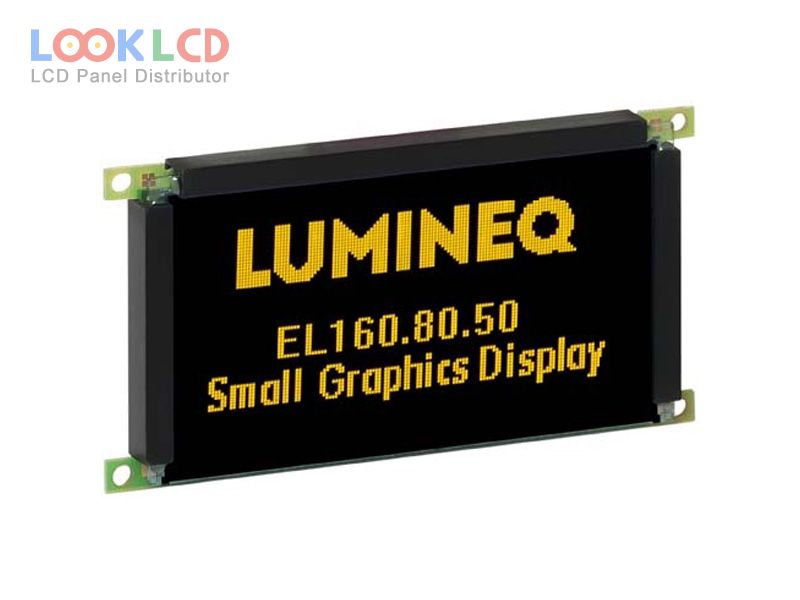

| Número da peça | EL160.80.50 IN |
| Marca | Lumineq |
| Tamanho | 3.5 |
| Aplicativo | IA |
| Resolução | 160×80 |
| Composição | EL |
| Brilho | 80 |
| CR | 50:1 |
| cores | Mono(Yellow) |
| luz de fundo | self |
| Interface | Parallel Data |
| marca do painel | Lumineq |
| modelo de painel | EL160.80.50 IN |
| tipo de painel | EL , EL |
| tamanho do painel | 3.5 inch |
| resolução | 160×80 |
| área ativa | 79.9×39.9 mm |
| contorno | 108.9×57.2 mm |
| superfície | |
| brilho | 80 cd/m² (Typ.) |
| taxa de contraste | 50 : 1 (Typ.) |
| exibir cores | Mono(Yellow) (1-bit) |
| ângulo de visão | 89/89/89/89 (Typ.)(L/R/U/D) |
| frequência | 240Hz |
| interface de sinal | Parallel Data (1ch, 4-bit), 20 pins |
| tensão de entrada | 5/12V (Typ.)(VL/VH) |
| aplicativo | IA |
