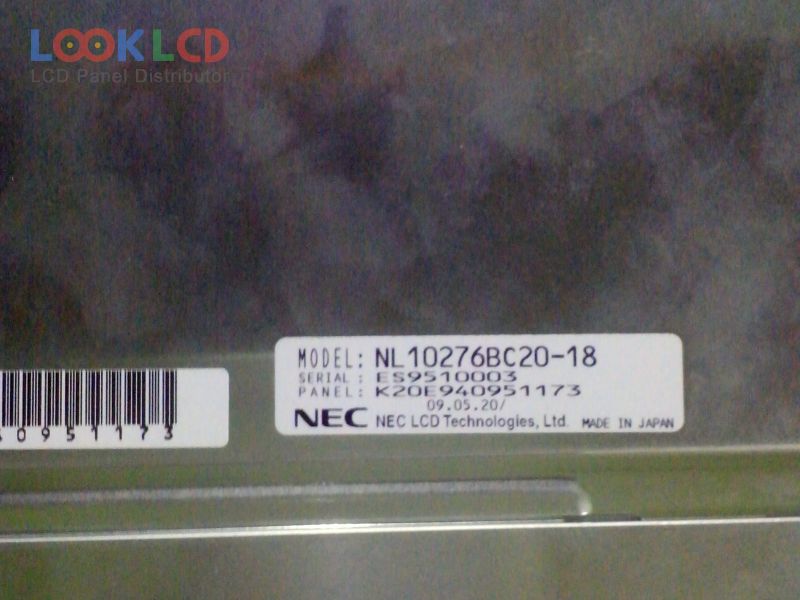

| Número da peça | NL10276BC20-18 |
| Marca | NLT |
| Tamanho | 10.4 |
| Aplicativo | IA |
| Resolução | 1024×768 |
| Composição | LCM |
| Brilho | 400 |
| CR | 900:1 |
| cores | 262K/16.7M |
| luz de fundo | WLED |
| Interface | LVDS |
| marca do painel | NEC |
| modelo de painel | NL10276BC20-18 |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 10.4 inch |
| resolução | 1024(RGB)×768 , XGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 210.4×157.8 mm |
| contorno | 228×178.5×9.2 mm |
| superfície | Clear, Hard coating (3H) |
| brilho | 400 cd/m² (Typ.) |
| taxa de contraste | 900:1 (Typ.) |
| exibir cores | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193140% |
| tempo de resposta | 3/15 (Typ.)(Tr/Td) |
| ângulo de visão | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 2 stringsWLEDWithout Driver |
| interface de sinal | LVDS (1 ch, 6/8-bit), 20 pins |
| tensão de entrada | 3.3V (Typ.) |
| aplicativo | IA |
