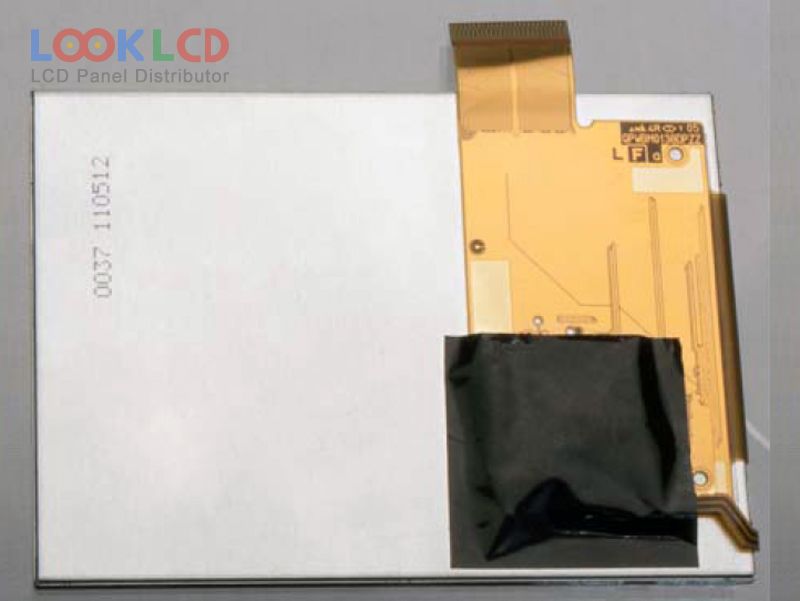

| Número da peça | LS037V7DW03A |
| Marca | SHARP |
| Tamanho | 3.7 |
| Aplicativo | HHP |
| Resolução | 480×640 |
| Composição | LCM |
| Brilho | 200 |
| CR | 200:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | TTL |
| marca do painel | SHARP |
| modelo de painel | LS037V7DW03A 2 Compatible model |
| tipo de painel | CG-Silicon , LCM |
| tamanho do painel | 3.7 inch |
| resolução | 480(RGB)×640 , VGA |
| modo de exibição | ASV, Normally Black, Transflective |
| área ativa | 56.16×74.88 mm |
| contorno | 65×89.2 mm |
| superfície | |
| brilho | 200 cd/m² (Typ.) |
| taxa de contraste | 200:1 (Typ.)(Transmissive)2:1 (Typ.)(Reflective) |
| exibir cores | 262K (6-bit), CIE193135% |
| tempo de resposta | 15/20 (Typ.)(Tr/Td) |
| ângulo de visão | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| tipo de lâmpada | 7S1PWLEDWithout Driver |
| interface de sinal | Parallel RGB (1 ch, 6-bit), 51 pins |
| tensão de entrada | 3.3V (Typ.)(VSHD) |
| aplicativo | HHP |
