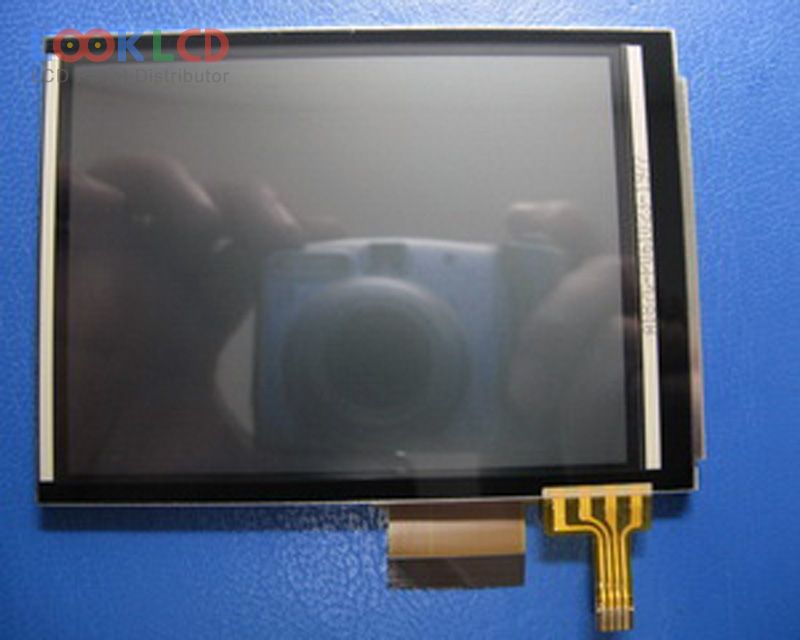

| Número da peça | LS037V7DD05 |
| Marca | SHARP |
| Tamanho | 3.7 |
| Aplicativo | PDA |
| Resolução | 480×640 |
| Composição | LCM |
| Brilho | 130 |
| CR | 100:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | TTL |
| marca do painel | SHARP |
| modelo de painel | LS037V7DD05 |
| tipo de painel | CG-Silicon , LCM |
| tamanho do painel | 3.7 inch |
| resolução | 480(RGB)×640 , VGA |
| modo de exibição | TN, Normally White, Transflective |
| área ativa | 56.16×74.88 mm |
| contorno | 65×90.4 mm |
| superfície | Hard coating (3H) |
| brilho | 130 cd/m² (Typ.) |
| taxa de contraste | 100:1 (Typ.)(Transmissive)2.5:1 (Typ.)(Reflective) |
| exibir cores | 262K (6-bit), CIE193122% |
| tempo de resposta | 20/20 (Typ.)(Tr/Td) |
| ângulo de visão | 40/40/40/40 (Typ.)(CR≥2)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | WLEDWithout Driver |
| interface de sinal | Parallel RGB (1 ch, 6-bit), 61 pins |
| tensão de entrada | 3.3/5.0/8.0/-4.0/-8.0V (Typ.)(VSHD/VSHA/VDD/VSSD/VEE) |
| aplicativo | PDA |
| LS037V3DX01 | SHARP | 3.7 | 640×480 |
| LS037V3DX02 | SHARP | 3.7 | |
| LS037V7DD05 | SHARP | 3.7 | 480×640 |
| LS037V7DD06 | SHARP | 3.7 | 480×640 |
| LS037V7DD06R | SHARP | 3.7 | 480×640 |
| LS037V7DW01 | SHARP | 3.7 | 480×640 |
| LS037V7DW02 | SHARP | 3.7 | 480×640 |
| LS037V7DW03 | SHARP | 3.7 | 480×640 |
| LS037V7DW03B | SHARP | 3.7 | 480×640 |
| LS037V7DW06 | SHARP | 3.7 | 480×640 |
| LTE283QV-F01 | Samsung | 2.8 | 320×240 |
| LTM035A776B | TOSHIBA | 3.5 | 240×320 |
| NL2432DR22-02B | NLT | 3.5 | 240×320 |
| NL2432DR22-11B | NLT | 3.5 | 240×320 |
| NL2432HC22-22B | NLT | 3.5 | 240×320 |
| NL2432HC22-23B | NLT | 3.5 | 240×320 |
| NL2432HC22-50B | NLT | 3.5 | 240×320 |
| NL4864HL11-01B | NLT | 3.5 | 480×640 |
| TD026TTEA1 | TPO | 2.6 | 480×640 |
| TX09D23VM1CAA | KOE | 3.5 | 240×320 |
