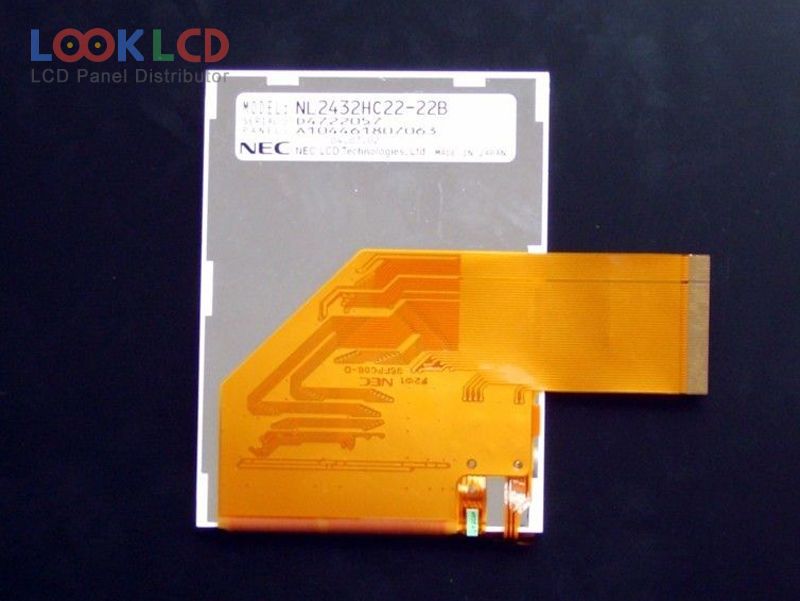

| Número da peça | NL2432HC22-22B |
| Marca | NLT |
| Tamanho | 3.5 |
| Aplicativo | PDA |
| Resolução | 240×320 |
| Composição | LCM |
| Brilho | 90 |
| CR | 90:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | TTL |
| marca do painel | NEC |
| modelo de painel | NL2432HC22-22B |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 3.5 inch |
| resolução | 240(RGB)×320 , QVGA |
| modo de exibição | TN, Normally White, Transflective |
| área ativa | 53.64×71.52 mm |
| contorno | 64×85×4.85 mm |
| superfície | |
| brilho | 90 cd/m² (Typ.) |
| taxa de contraste | 90:1 (Typ.)(Transmissive)6:1 (Typ.)(Reflective) |
| exibir cores | 262K (6-bit), CIE193140% |
| tempo de resposta | 14/25 (Typ.)(Tr/Td) |
| ângulo de visão | |
| frequência | 60Hz |
| tipo de lâmpada | 6S1PWLEDWithout Driver |
| interface de sinal | CMOS (1 ch, 6-bit), 50 pins |
| tensão de entrada | 3.0/5.0/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF) |
| rohs: | |
| aplicativo | PDA |
