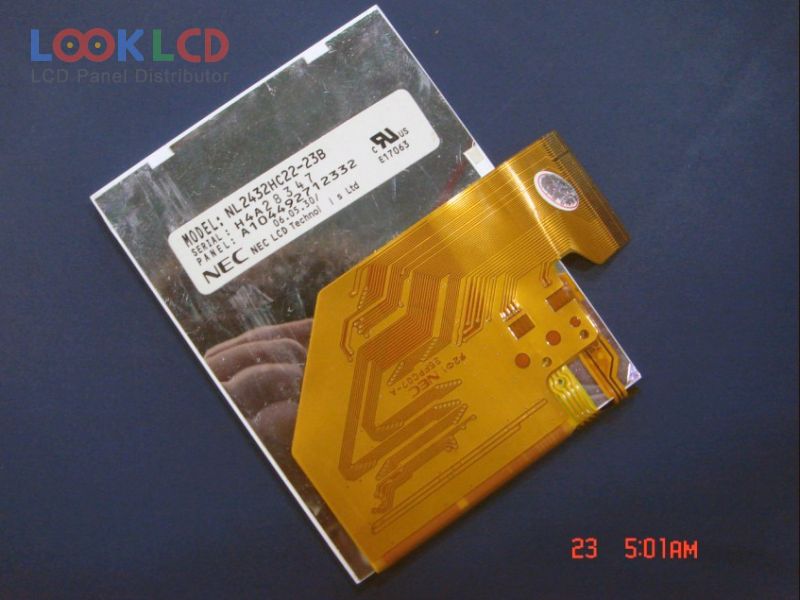

| Número da peça | NL2432HC22-23B |
| Marca | NLT |
| Tamanho | 3.5 |
| Aplicativo | PDA |
| Resolução | 240×320 |
| Composição | LCM |
| Brilho | 90 |
| CR | 80:1 |
| cores | |
| luz de fundo | WLED |
| Interface | |
| marca do painel | NEC |
| modelo de painel | NL2432HC22-23B |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 3.5 inch |
| resolução | 240(RGB)×320 , QVGA |
| modo de exibição | TN, Normally White, Transflective |
| área ativa | 53.64×71.52 mm |
| contorno | 64×85 mm |
| superfície | |
| brilho | 90 cd/m² (Typ.) |
| taxa de contraste | 80:1 (Typ.)(Transmissive)10:1 (Typ.)(Reflective) |
| exibir cores | |
| tempo de resposta | |
| ângulo de visão | |
| tipo de lâmpada | WLED |
| rohs: | |
| aplicativo | PDA |
