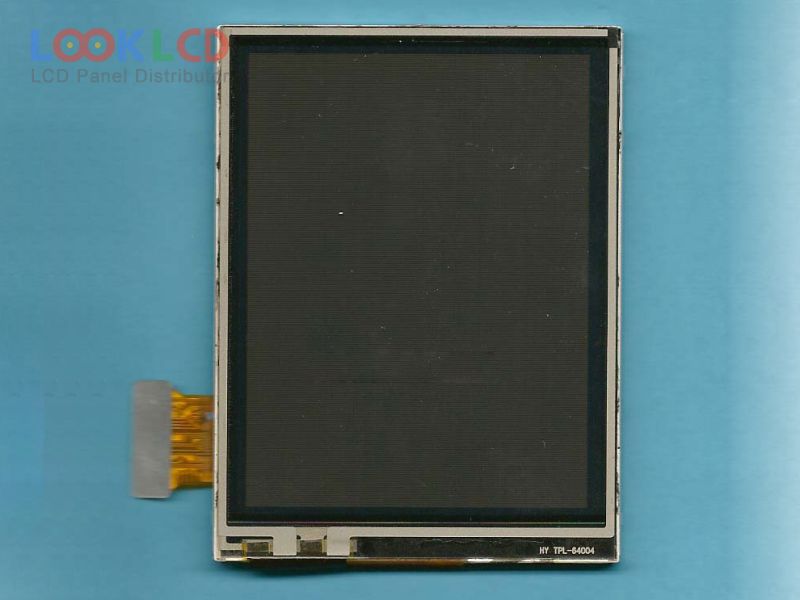

| Número da peça | TD035STEB2 |
| Marca | TPO |
| Tamanho | 3.5 |
| Aplicativo | PDA |
| Resolução | 240×320 |
| Composição | LCM |
| Brilho | 100 |
| CR | 100:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | TTL |
| marca do painel | Toppoly |
| modelo de painel | TD035STEB2 |
| tipo de painel | LTPS TFT-LCD , LCM |
| tamanho do painel | 3.5 inch |
| resolução | 240(RGB)×320 , QVGA |
| modo de exibição | TN, Normally White, Transflective |
| área ativa | 53.64×71.52 mm |
| contorno | 64×85×4.9 mm |
| superfície | |
| brilho | 100 cd/m² (Typ.) |
| taxa de contraste | 100:1 (Typ.)(Transmissive)10:1 (Typ.)(Reflective) |
| exibir cores | 262K (6-bit), CIE193140% |
| tempo de resposta | 10/20 (Typ.)(Tr/Td) |
| ângulo de visão | 55/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| tipo de lâmpada | 6S1PWLEDWithout Driver |
| interface de sinal | Parallel RGB (1 ch, 6-bit), 60 pins |
| tensão de entrada | 3.3/5.0/11.7/-6.5V (Typ.)(VCC3/VCC5/VDD/VEE) |
| aplicativo | PDA |
