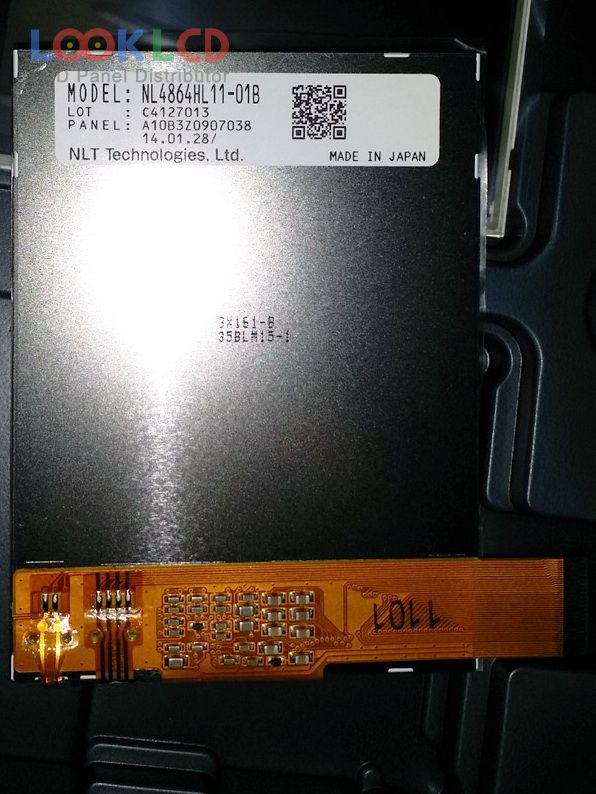

| Número da peça | NL4864HL11-01B |
| Marca | NLT |
| Tamanho | 3.5 |
| Aplicativo | PDA |
| Resolução | 480×640 |
| Composição | LCM |
| Brilho | 200 |
| CR | 180:1 |
| cores | 262K |
| luz de fundo | WLED |
| Interface | TTL |
| marca do painel | NEC |
| modelo de painel | NL4864HL11-01B |
| tipo de painel | LTPS TFT-LCD , LCM |
| tamanho do painel | 3.5 inch |
| resolução | 480(RGB)×640 , VGA |
| modo de exibição | TN, Normally White, Transflective |
| área ativa | 53.28×71.04 mm |
| contorno | 63.5×85 mm |
| superfície | Clear, Hard coating (3H) |
| brilho | 200 cd/m² (Typ.) |
| taxa de contraste | 180:1 (Typ.)(Transmissive) |
| exibir cores | 262K (6-bit), CIE193140% |
| tempo de resposta | |
| ângulo de visão | 30/30/30/35 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | WLED |
| interface de sinal | CMOS (1 ch, 6-bit), 45 pins |
| tensão de entrada | 3.0/3.0V (Typ.)(VCC/VCCIO) |
| aplicativo | PDA |
| 35HVE0H | SII | 3.5 | 320×480 |
| 35QVW1T | SII | 3.5 | 320×240 |
| COM35H3P09UTC | ORTUSTECH | 3.5 | 480×640 |
| DLC0350BMG-1 | Other | 3.5 | 240×320 |
| GCX123AKQ-E | JDI | 3.5 | 240×320 |
| LQ035Q1DH01 | SHARP | 3.5 | 320×240 |
| NL4864HL11-01B | NLT | 3.5 | 480×640 |
| PT035TN01 V.6 | Innolux | 3.5 | 320×240 |
| TX09D70VM1CEA | KOE | 3.5 | 240×320 |
| TX09D83VM3CEA | KOE | 3.5 | 240×320 |
| ACX502BMU-7 | SONY | 3.5 | 240×320 |
| LQ035Q7DH06 | SHARP | 3.5 | 240×320 |
| LS037V7DD05 | SHARP | 3.7 | 480×640 |
| NL2432HC22-22B | NLT | 3.5 | 240×320 |
| NL2432HC22-25E | NLT | 3.5 | 240×320 |
| NL2432HC22-32B | NLT | 3.5 | 240×320 |
| NL2432HC22-40J | NLT | 3.5 | 240×320 |
| TD026TTEA1 | TPO | 2.6 | 480×640 |
| TM038QV-67A02E | SANYO | 3.8 | 320×240 |
| TX09D23VM1CAA | KOE | 3.5 | 240×320 |
