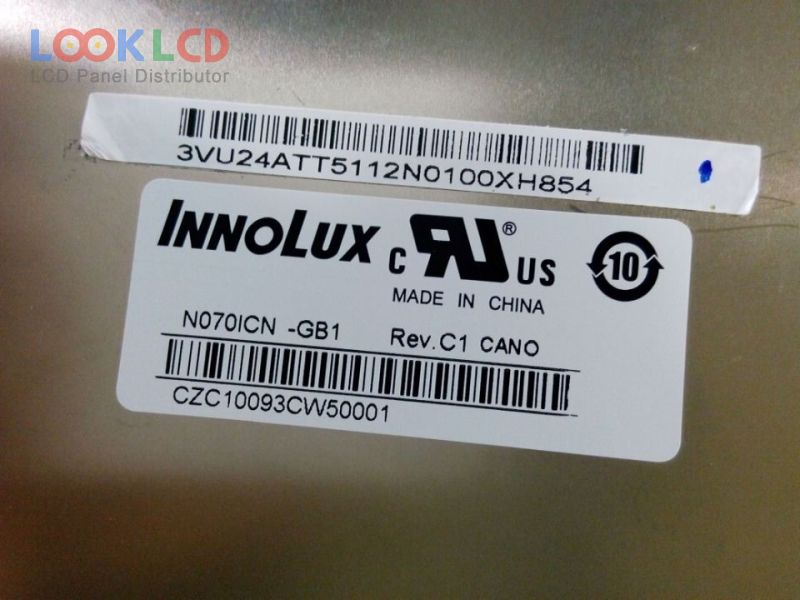

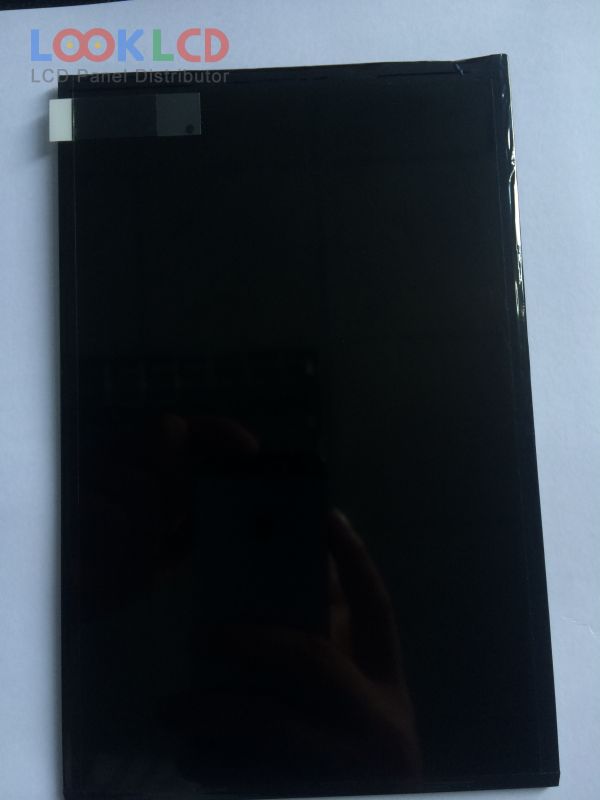

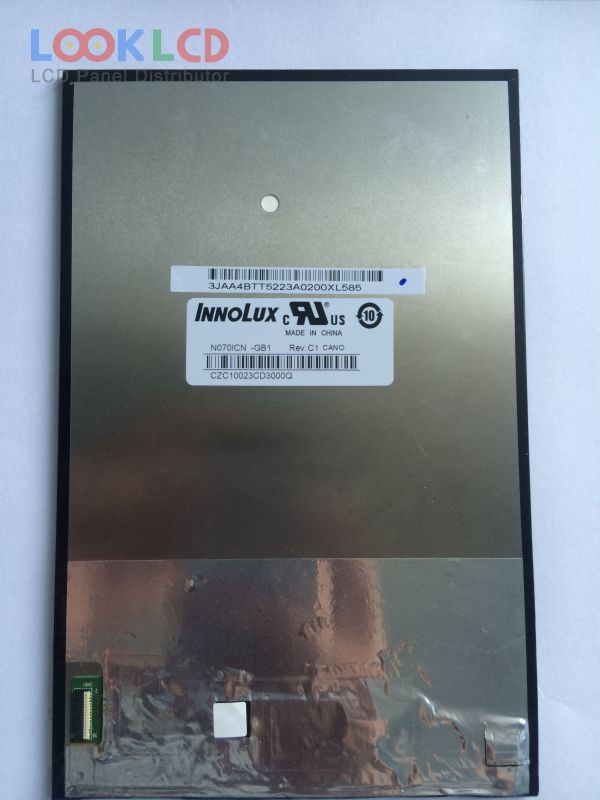

| Número da peça | N070ICN-GB1 |
| Marca | Innolux |
| Tamanho | 7.0 |
| Aplicativo | PAD |
| Resolução | 800×1280 |
| Composição | LCM |
| Brilho | 300 |
| CR | 800:1 |
| cores | 16.7M |
| luz de fundo | WLED |
| Interface | MIPI |
| marca do painel | INNOLUX |
| modelo de painel | N070ICN-GB1 |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 7.0 inch |
| resolução | 800(RGB)×1280 , WXGA |
| modo de exibição | IPS, Normally Black, Transmissive |
| área ativa | 94.2×150.72 mm |
| contorno | 105.62×163.27×4.56 mm |
| superfície | Glare (Haze 0%), Hard coating (3H) |
| brilho | 300 cd/m² (Typ.) |
| taxa de contraste | 800:1 (Typ.) |
| exibir cores | 16.7M (8-bit), CIE193160% |
| tempo de resposta | 11/9 (Typ.)(Tr/Td) |
| ângulo de visão | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 3S6PWLEDWithout Driver |
| interface de sinal | MIPI (4 data lanes), 31 pins |
| tensão de entrada | 1.8/3.3V (Typ.)(VDDI/VCI) |
| aplicativo | PAD |
