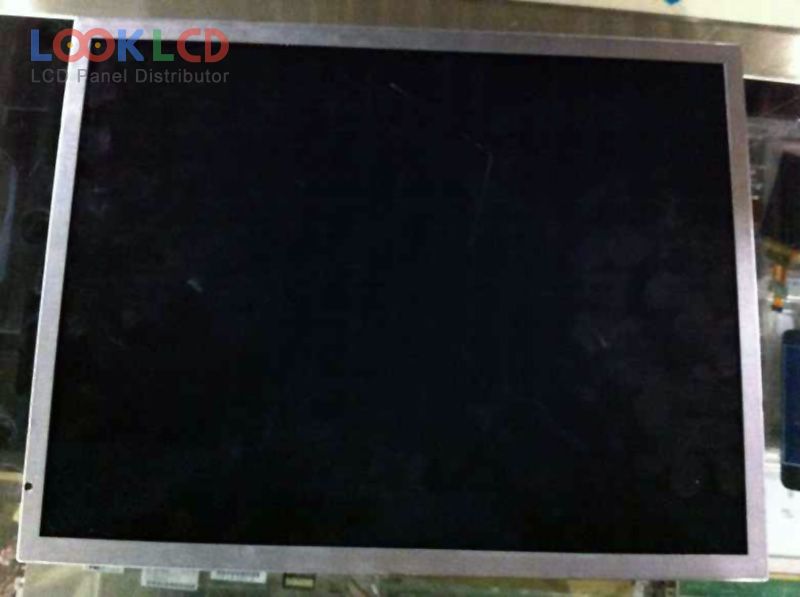

| Número da peça | NL10276BC30-18C |
| Marca | NLT |
| Tamanho | 15.0 |
| Aplicativo | IA |
| Resolução | 1024×768 |
| Composição | LCM |
| Brilho | 600 |
| CR | 600:1 |
| cores | 16.7M |
| luz de fundo | CCFL |
| Interface | LVDS |

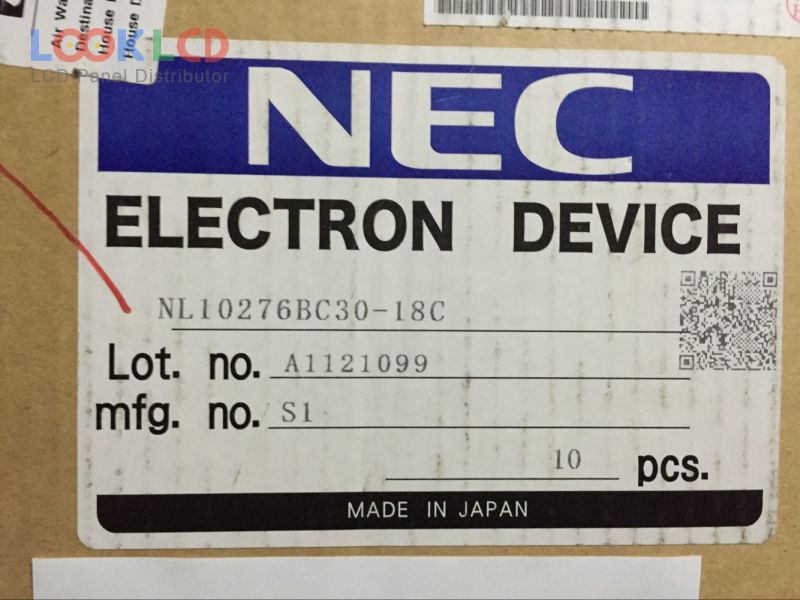

| marca do painel | NEC |
| modelo de painel | NL10276BC30-18C |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 15.0 inch |
| resolução | 1024(RGB)×768 , XGA |
| modo de exibição | TN, Normally White, Transmissive |
| área ativa | 304.128×228.096 mm |
| contorno | 326.5×253.5×17 mm |
| superfície | Clear, Hard coating (2H), Antireflection |
| brilho | 600 cd/m² (Typ.) |
| taxa de contraste | 600:1 (Typ.) |
| exibir cores | 16.7M (6-bit + Hi-FRC), CIE193140% |
| tempo de resposta | 4/14 (Typ.)(Tr/Td) |
| ângulo de visão | 80/80/80/60 (Typ.)(CR≥10)(L/R/U/D) |
| frequência | 60Hz |
| tipo de lâmpada | 4 pcsCCFLWithout Driver |
| interface de sinal | LVDS (1 ch, 8-bit), 20 pins |
| tensão de entrada | 3.3V (Typ.) |
| rohs: | |
| aplicativo | IA |
