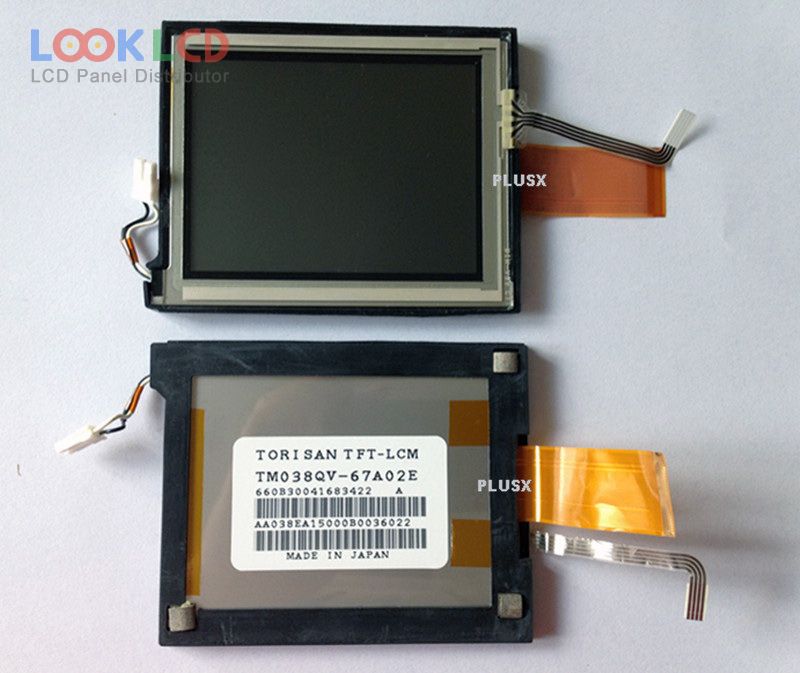

| Número da peça | TM038QV-67A02A |
| Marca | SANYO |
| Tamanho | 3.8 |
| Aplicativo | PDA |
| Resolução | 320×240 |
| Composição | LCM |
| Brilho | 28 |
| CR | |
| cores | 262K |
| luz de fundo | CCFL |
| Interface | TTL |
| marca do painel | TORISAN |
| modelo de painel | TM038QV-67A02A |
| tipo de painel | a-Si TFT-LCD , LCM |
| tamanho do painel | 3.8 inch |
| resolução | 320(RGB)×240 , QVGA |
| modo de exibição | TN, Normally White, Reflective |
| área ativa | 76.8×57.6 mm |
| contorno | 96.8×73 mm |
| superfície | Glare (Haze 0%), Hard coating (3H) |
| brilho | 28 cd/m² (Typ.) |
| taxa de contraste | 7/17(Reflective) |
| exibir cores | 262K (6-bit) |
| tempo de resposta | 10/10 (Typ.)(Tr/Td) |
| ângulo de visão | 60/60/50/50 (Typ.)(CR≥2)(L/R/U/D) |
| tipo de lâmpada | 1 pcsCCFLWithout Driver |
| interface de sinal | Parallel RGB (1 ch, 6-bit), 60 pins |
| tensão de entrada | 3.3/5/15/-10V (Typ.)(VDD/VCC/VGH/VGL) |
| aplicativo | PDA |
